High Quality Jibs From CRANE Factory Direct Sales Of Crane Lorry Cranes Hydraulic Crane With Derricking from TRUCK

1 piece
MOQ
High Quality Jibs From CRANE Factory Direct Sales Of Crane Lorry Cranes Hydraulic Crane With Derricking from TRUCK
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Feature: TRUCK CRANE
Showroom Location: None
Condition: New
Application: construction industry,road rescue
Rated Loading Capacity: 135000 KG
Rated Lifting Moment: 6600 KN.m
Max. Lifting Height: 22 (from crane installation surface)
Warranty: 1 Year
Hydraulic Cylinder Brand: Premium Brand
Hydraulic Pump Brand: Premium Brand
Hydraulic Valve Brand: Premium Brand
Engine Brand: Premium Brand
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: Other
Warranty of core components: 1 Year
Core Components: Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC, Other
Weight (KG): 53000 kg

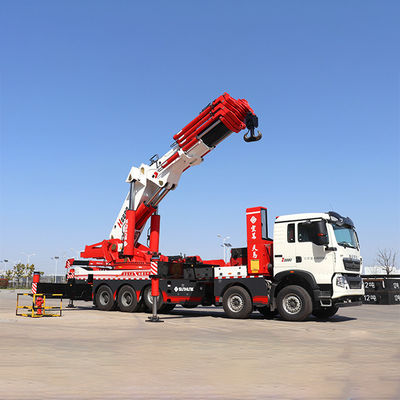

Product Name: H6680 Truck Crane
Product Category: H6680
Product Brand: HC Tianmia Hotsell
Maximum load moment (kN.m): 6600
Maximum lifting capacity (kg): 135000
Number of expansion joint sections: 6
Maximum lifting height (m): 22(from crane installation surface)
Derricking angle (°): 1~73.1°
Rated working pressure (MPa): 31
基本情報
お支払配送条件
Packaging Details: Shipment according to your needs,The price of the crane does not include the price of the car chassis
製品の説明
Product Description

Product Configuration

1. Standardly configured with six-section hydraulic telescopic jib, with working radius of 19.2m;Optional manual telescopic jib of seven and eight sections, working radius of 24m, equipped with the 22t lifting capacity hook with bearing;
2. Standardly configured with three imported large torque slewing reducers.
3. Standardly configured with six transverse/longitudinal telescopic outriggers, maximum horizontal outrigger span 7.9m, maximum longitudinal leg span 6.3m;
4. Counterweight system: optional 1m telescopic removable counterweight bracket, optional 10T/20T/30T counterweight;
5. Hydraulic system: standardly configured with high-pressure dual-variable hydraulic control system
6. Standardly configured with customized large hydraulic fuel tank;
7. Lighting system: standardly configured with all-round lighting system; the boom equipped with a 4-LED array highlight lamp, frame equipped with a 4-LED array highlight lamp, the turntable equipped with a 2-LED flashing warning lamp, the outrigger equipped with 6-LED warning light belt, and the electrical system with IP65 waterproofing;
8. Control system: standardly configured with basic electric control system, including basic torque protection system, lighting system control, emergency stop function, heat radiator and oil filter alarm.
9. Standardly configured with fully surrounding exterior structure and skirt structure;
10. Standardly equipped with double high-pressure filters;
11. Standardly configured with large level indicators on both sides of the frame;
12. Standardly configured with a 100T lifting hook with bearings;
13. Standardly configured with vehicle painting, red color and labeling;
14. Standardly configured high-power intelligent temperature control oil cooler;
Technical Parameters
Technical Parameters
Product category
H6680
Maximum load moment (kN.m)
6600
Maximum lifting capacity (kg)
135000
Number of expansion joint sections
6
Chassis
ZZ5537V31BHE1
Engine
MC11.44-50
Maximum working radius (m)
19.2
Maximum lifting height (m)
22
Derricking angle (°)
1～73.1°
Rotating angle (°)
360° full slewing
Maximum transverse outrigger span (m)
7.9
Maximum longitudinal outrigger span (m)
6.3
Rated working pressure (MPa)
31
Total mass with chassis (t)
53
Application Scenarios
Company Profile
Why Choose Us

Product advantages:

1. Axis load and total weight meet the requirements of the new regulations, and the run cost is economical;
2. With 3.55m minimum driving height, can easily enter the old factory;
3. One/Two variable double cylinder design, stable and safe operation;
4. Optional telescopic jibs of at most 8 sections to meet the needs of large-range operation;
5. One/Two/Three extension crane jib double push design to realize strong and more stable thrust;
6. 1 meter telescopic 10T/20T/30T weight system, for safe and stable operation;
7. Standardly configured with electronic moment limit system, so as to focus on lifting operations in safe and carefree manner;
8. Standardly configured with wireless outrigger remote control to achieve more convenient operation;
9. Hydraulic valve lock of imported high-quality brand for higher reliability;
10. Using double variable pump system, it greatly improves the working efficiency of the hydraulic system, effectively reduces the operation noise, and reduces the hydraulic system heat, and greatly improves the derricking speed and crane jib telescopic speed;
11. Equipped with custom imported valve lock, load sensitive proportional multiplex valve and balance valve, hydraulic precise control, proportional action, improving the stability and reliability of the hydraulic system;
12. The key components made of SSAB 1100 high-strength plate, with better toughness and lighter weight;
13. Vehicle design route: integrated frame design, six-outrigger design, turntable centralized design, three-slewing-reducer
scheme, customized counterweight system, etc., in line with laws and regulations, achieving more excellent performance, safer and more reliable operation;
14. Intelligent safety control system with independent IPR for more expansibility: the whole-vehicle remote control, overload protection, anti-dumping, load weighing
