ホーム /製品/小型トラッククレーン/TRUCK CRANE High Quality Three Wheel Truck Crane 3 Ton Crane Truck Mini Pickup Truck Mounted Crane For Sales

TRUCK CRANE High Quality Three Wheel Truck Crane 3 Ton Crane Truck Mini Pickup Truck Mounted Crane For Sales

1 Piece
MOQ
TRUCK CRANE High Quality Three Wheel Truck Crane 3 Ton Crane Truck Mini Pickup Truck Mounted Crane For Sales
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Feature: TRUCK CRANE
Showroom Location: None
Condition: New
Application: construction
Rated Loading Capacity: 3 Ton
Max. Lifting Height: 18M
Warranty: 1 Year
Hydraulic Cylinder Brand: Zhongrui
Hydraulic Pump Brand: Zhongrui
Hydraulic Valve Brand: Zhongrui
Engine Brand: CHANGCHAI
UNIQUE SELLING POINT: High load Moment
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: Other
Weight (KG): 4000 kg
Capacity: 3 Ton Truck Mounted Crane
Boom type: Hydraulic Straight Arm
Keyword: Crane Truck Mobile Truck Crane Sizes
Power: Hydraulic System
Origin: China Mainland
Control system: Hydraulic Manual Control
Crane type: Truck Crane Mobile Crane Hydraulic Crane
Product name: Mobile Crane
Hydraulic parts: Hydraulic Control Truck
Key words: Electric Mini Crane
基本情報
お支払配送条件
製品の説明
Product Overview

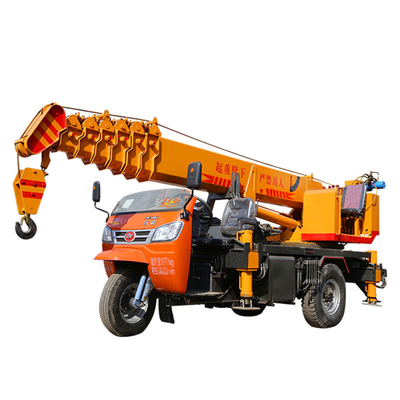

Three-wheel Truck-mounted Crane

Three wheel crane is fixed in a three-wheeled agricultural vehicles through the hydraulic lifting and telescoping system to achieve the lifting and lowering of goods, rotary, lifting equipment. Three wheeled crane has the unique advantage of being able to lift and carry goods, and being mobile and flexible, effectively solving the problem of how to lift and transport safely and quickly in a small space. Widely used in construction, transportation, garden construction, road paving, loading and unloading, logistics loading and unloading of goods, rescue and transfer of goods. The main parts of the agricultural tricycle crane with the truck are divided into two parts, one is the original tricycle chassis, and the other is the crane.

Products Description
Product Paramenters
NO.
Item
Data
01.
Engine
Changchai single bar water-cooled 25hp
02.
Hydraulic Pumps
40L/min
03.
Electric motors
380v,7.5kw,with hydraulic pump
04.
Boom length
3000mm*7
05.
Hoisting speed of the rope
70m/min
06.
Lift weight
3T
07.
Lift High
18000mm
08.
Chassis
Wuzheng heavy duty chassis
09.
Tires
825-16
10.
Hydraulic outriggers
Telescopic 4 legs plus 1 rear leg
11.
Traveling speed
60km/h
12.
Whole machine size
4800*1500*2100mm
Transport
FAQ
Q1-Who are we?

A1-We are based in Shandong, China, sell to Domestic Market,Southeast Asia,Eastern Europe,South Asia,Africa,Eastern Asia,South America,Oceania,Northern Europe,Central America,North America,Mid East.

Q2-How to make sure the quality we sent to you is same with what we said?

A2-We are a big manufacturer with a long history, order through the alibaba trade assurance, will ganrantee the safe of your money and the quality of the goods.

Q3-How to order ?

A3-
Step 1, please tell us what model and quantity you need; Step 2, then we will make a PI for you to confirm the order details; Step 3, when we confirmed everything, can arrange the payment; Step 4, finally we deliver the goods within the stipulated time.

Q4-After-sales service?

A4-1 year warranty for all kinds of products;If you find any defective accessories first time, we will give you the new parts for free to replace in the next order, as an experienced manufacturer, you can rest assured of the quality and after-sales service.

Q5-Do you offer any custom designs?

A5-Yes,we have our own factory. We provide services to top range partners.Produce a superior product for you by your designs.

Q6-Is it possible to discount?

A6-Yes, depending on the quantity, there are different discounts, please contact us to inquire!
