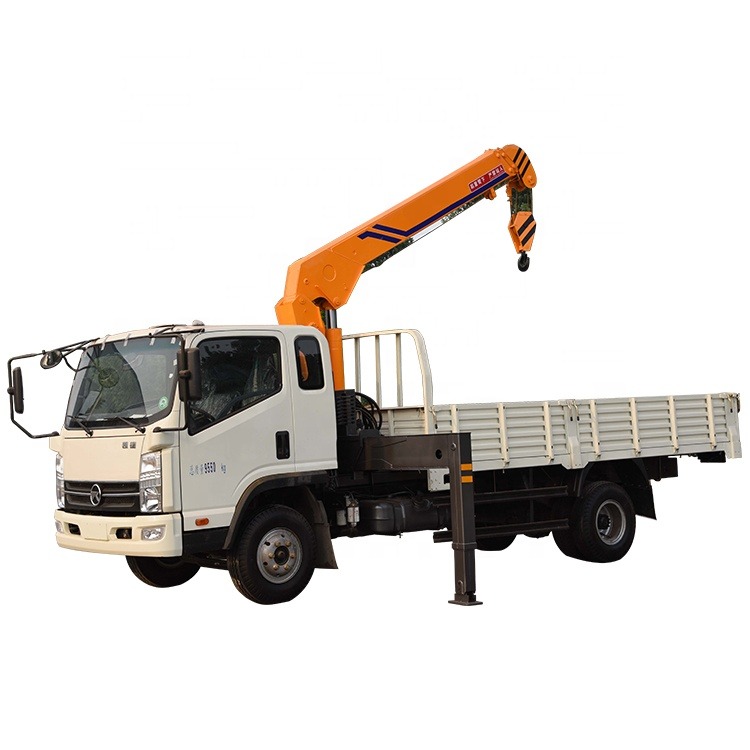

TRUCK CRANE China Manufacture Conventional Pickup 5 Ton Truck Mounted Crane

1 Set
MOQ
TRUCK CRANE China Manufacture Conventional Pickup 5 Ton Truck Mounted Crane
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Feature: TRUCK CRANE
Showroom Location: None
Condition: New
Application: construction
Rated Loading Capacity: 5175kg
Rated Lifting Moment: 12.5Ton.m
Max. Lifting Height: 14m
Span: 2.2-5m
Warranty: 1 Year
Hydraulic Cylinder Brand: hengxuan
Hydraulic Pump Brand: hengxuan
Hydraulic Valve Brand: hengxuan
Engine Brand: hengxuan
UNIQUE SELLING POINT: High operating efficiency
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: New Product 2020
Warranty of core components: 1 Year
Core Components: Motor, Engine
Engine power: 95kw
Top speed: 95km/h
Internal dimensions of box cargo: 4620*2100*550
Total mass: 9995kg
Applicable Industries: Farms, Construction works , Energy & Mining
After Warranty Service: Online support
Local Service Location: None
After-sales Service Provided: Video technical support
証明: CE/ISO9001
基本情報
証明: CE/ISO9001
お支払配送条件
Packaging Details: Wooden case
Supply Ability: 198 Set/Sets per Week
製品の説明
Products Description
China Manufacture pickup conventional 5Ton Truck mounted Crane
Truck-mounted lifting truck, crane truck, is a kind of equipment for lifting, turning and lifting goods through hydraulic lifting and telescopic system, which is usually assembled on trucks. The lifting weights are 3 tons, 5 tons, 8 tons, 12 tons and more.

5 tons truck mounted crane (Kama chassis)
model
5S3
Overall width, span
2200mm-5000mmm
Choose chassis
Kama（Optional）
engine model
YN38CRE1
Standard discharge
country 5
Engine power
95kw(130 horsepower）
Lifting weight
5000kg
Tyre model
8.25-16LT
Boom
3.5m*3Section
Wheelbase（mm）
4200
Basic arm length
4m-11.5m
Dimensions（mm）
7660*2280*3160
Lifting height
14m
Internal dimensions of cargo compartment（mm）
4620*2100*550
Maximum lifting distance
12.5T*M
Total mass(kg)
9995
Maximum elevation angle
0-75°
Rated contained mass(kg)
3340
Swivel angle
360°Full swing
Top speed（km/h）
95
Swivel speed
2.5
Reserve installation space(m)
0.75
Hydraulic outrigger
automatic
Big frame
Three-layer big frame
Boom telescopic
Return rope
Steering method
Steering wheel power
refrigerating system
Warm air

Recommend Products
Company Profile
FAQ
Q1: How about the quality of your products? A: Our machines are manufactured strictly according to national and international standards, and we take a test on each equipment before delivery. You can also use Trade Assurance by Alibaba for product quality protection, on-time shipment protection and payment protection. Q2: How about the price? A: We are manufactory, and we can give you lower price than those trade companies. Besides, customers from Alibaba can geta discount. Q3: Do you provide after-sale service? A: Yes. The warranty peniod of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems. Q4: Do you provide equipment operation training? A: Yes. We can send professional engineers to the working site for equipment istallation, adjustment, and operation training. All of our engineers have passports. Q5: Can you test our samples? A: Yes. You can send your samples to us for test and analysis.
Q6: Are you excavator machine manufacturer?
A: We are the excavator machine manufacturer. Jining Hengxuan construction Machinery Co., Ltd. is located in Jining city, Shandong Province.
Q7: How to identify the quality about our product for sale?
A: Our product have a 12 months warranty after sale.
Q8:What is the container size of product?
A:Generally, our products are loaded in high quality containers, the actual size can be adjusted according to the needs.
Q9: How many days it takes before you deliver the goods to us?
A: For these product, we need 1 or 2 more days to order wooden boxes or pallets, and 3 days to book flight/vessel and ship the goods to named port/airport.
Explanation of professional terms
The truck crane can be loaded with various kinds of grasping AIDS, such as wooden grab bucket, hanging basket, brick clamp, drilling tools, etc., so as to realize multi-scene operation. The truck crane is widely praised for its flexible and versatile features.
Crane boom: the crane boom is extended and contracted by hydraulic cylinder, and the hook pulley is suspended from the top of the
 Rotating system: The rotating system generally includes hydraulic motor, hydraulic
reducer, etc., which makes the column rotate.
Leg control lever: Leg control lever is used to control the telescopic action of left and
right leg cylinders.
Hoisting control lever: the hoisting control lever is used to control the hoisting
mechanism (lifting or lowering heavy objects).
Product advantage comparison chart
products advantages
Our services

24-hour after-sales service by email or telephone.
100% response rate.
Our customer-centered sales and technical team will always serve you
Provide OEM services
Warranty: 12 months warranty, beyond the warranty period, all spare parts are provided to you at our price (excluding freight).
product details
Advantage product display
Before ordering: provide detailed quotation and help you find the truck crane you need. We are very happy to accept OEM and ODM and welcome your presence. Order: We can draft Alibaba's trade guarantee order. This type of order can ensure your payment, the truck crane is very safe, and we can also accumulate our transaction amount on Alibaba. After placing the order: we will deliver the truck crane and follow up the goods in time. We will also provide customers with after-sales service in time.
