ホーム /製品/交差式ブームトラック/TRUCK CRANE 20 Ton Telescopic Upright Hydraulic Boom Cranes 8x4 Truck-mounted Carrying Hoisting Truck

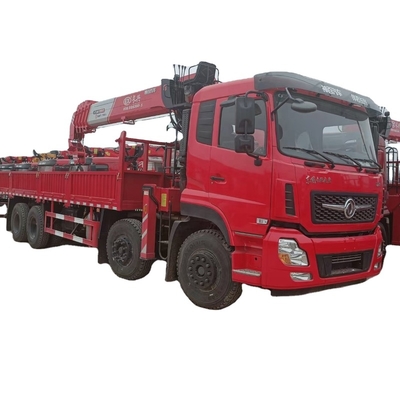

TRUCK CRANE 20 Ton Telescopic Upright Hydraulic Boom Cranes 8x4 Truck-mounted Carrying Hoisting Truck

1 Set
MOQ
$55,900.00(1 - 4 Sets) $55,000.00(5 - 9 Sets) $53,600.00(>=10 Sets)
価格
TRUCK CRANE 20 Ton Telescopic Upright Hydraulic Boom Cranes 8x4 Truck-mounted Carrying Hoisting Truck
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Feature: TRUCK CRANE
Showroom Location: Philippines, India, Romania, Bangladesh, Kazakhstan, Ukraine, Uzbekistan, Malaysia
Condition: New
Application: Constructions
Rated Loading Capacity: 20 Ton
Rated Lifting Moment: 20T.m
Max. Lifting Height: 21.6m
Span: 7.8m
Warranty: 1 Year
Hydraulic Cylinder Brand: Shenbai
Hydraulic Pump Brand: Shenbai
Hydraulic Valve Brand: Shenbai
Engine Brand: Yuchai
UNIQUE SELLING POINT: high operating performance with good price
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: ordinary product
Warranty of core components: 1 Year
Core Components: Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine
Weight (KG): 20800 kg
Engine brand: Yuchai
Crane brand: Changxing
wheel base: 1850+3200+1350mm
Crane weight: 6650kg
Max lifting weight: 16 Ton
Max lifting height: 21.6m
Working radius: 2.5-19m
Drive type: 8X4 LHD RHD
Engine: Yuchai290
基本情報
お支払配送条件
Packaging Details: RO-RO shipping
Supply Ability: 1000 Set/Sets per Year
製品の説明
SIMILAR PRODUCTS
PRODUCT SPECIFICATIONS
Factory direct sales truck mounted crane
20 ton straight boom Crane information
Crane Specification
1
Crane Brand
Chang xing
Remarks: Chassis optional, colors optional
2
Arms sections
5
5
3
Max lifting capacity(kg)
16000kg (2.5m)
16000kg (2.5m)
4
Max. Lifting moment
50ton.m
35 ton. m
5
Working radius(m)
19m
18m
6
Max lifting height(m)
21.6m
20.1m
7
Crane weight(kg)
7655kg
6200kg
8
Operation pressure
31mpa
31mpa
9
span(m)
7.8m
5.2m
10
Rotation angle
360 full rotation
360 full rotation
Chassis information
Item
Data
Item
Data
1
Applicable crane
14/16 ton
Max Speed
88km/h
2
Chassis Brand
Dongfeng
Axles
4
3
Rated loading weight
10070/10005KG
Cab
2/3 person
4
Curb weight
20800/19900 kg
Engine Brand
Yu chai, Kang ming si
5
Dimensions
1060/120 x 250/255x 388/378 cm
Emission Standard
Euro 3/4/5
6
Cargo body dimension
850/720x 270/250/240 x65/55 cm
Horse Power
295/310hp
7
Wheelbase
18500+3200+1350cm, 2150+4400+1350 cm
Emissions
6800/6700ml
8
Drive type
8x4
Chassis Brand
Dongfeng / Shac Man / Faw / Howo /camc optional
The truck mounted crane also calls boom truck,crane truck,unic crane, crane truck, lorry mounted crane, truck cargo with loader crane, knuckle boom crane on truck chassis, truck with mounted back crane, crane mounted cargo truck, truck with loading crane,boom crane, boom crane truck, articulated crane truck,is a kind of equipment that realizes the lifting, turning, and lifting of goods through a hydraulic lifting and telescopic system. It is usually assembled on a truck. It is generally composed of truck chassis, cargo compartment, power take-off and crane.It is designed for multiple work applications,
such as electric line maintenance and construction, transmission and distribution, tree trimming and other related uses . General materials lifting of various size and load with standard hook arrangement for construction sites, mines, projects, logistics requirements.. Our truck with crane also install Remote control, Brick clamping apparatus, different kinds of grab bucket, work basket, etc.
There are telescopic boom cranes and knuckle boom cranes, covering a wide range of capacities as follows:
Telescopic Boom Crane:2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 18Ton,20Ton,25Ton.
Knuckle Boom Crane:2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 18Ton, 20Ton, 25Ton, 27Ton, 30Ton, 32Ton, 35Ton.
The cranes can be of famous brands as Palfinger, Unic, Tadano, X-CMG, Zoom-lion,ChangXing, etc.
For truck, DONGFENG,ISUZU,Foton,Sinotruk Howo,FAW,Shacman for your choice.
PRODUCT CONFIGURATION
Other Dongfeng Trucks with cranes
Dongfeng 4X2 5 ton straight boom crane (1.8ton, 4ton available)
Dongfeng 6X4 10 ton Straight boom crane
Can apply for 12 ton
Dongfeng 8X4 16ton Straight boom crane
can apply for 20ton
Dongfeng 4X2 8 ton Knuckle boom crane with TIPPER truck
Dongfeng 6X4 10 ton knuckle boom crane
Dongfeng 8X4 16ton knuckle boom crane
Other Chassis Brand with CX cranes: Shacman Delong, FAW, HOWO
Company Profile / About Us


Hubei Shenbai Special Automobile Co., Ltd. was established in 2013 and is located in Suizhou City, Hubei Province. It is a core enterprise of Shenbai Group and a strategic partner of Sany Palfinger. The group focuses on the research, development and manufacturing of cranes, and other special purpose vehicle, like:truck mounted crane, flat bed tow trucks, refrigerated truck,garbage trucks and other special trucks. Shenbai now has an annual production scale of 8,000 special vehicles, and has passed IS9001-2000 international quality system certification and national 3C certification.
Our products have been shipped to many different countries and areas in Asia, Africa and South-America, we're looking for more and more longterm partnership all over the world!
FAQ
1.Are you factory or trading Company?
Yes, we are factory. You're welcomed to visit our factory.
2.Could your company modify the standard product depends on my request?
Yes. Our company is specialized in researching and designing various of special purpose vehicle and spare parts. We can provide any product according to your demand.
3. Could your company totally customize products for me?
We can provide the customized-designing product meeting with any of your demand.
4. Could you provide certification that we need?
We can provide various certifications associate with truck.
5. How long could we receive our goods?
It depends on the product that you have ordered. Generally 20-30 days.
6. How about the after-sale service?
We can provide you the technical support to guide you repair your product. And we will also offer original spare parts .
Our service:
1.We offer the full-series products with high level standard, of truck mounted cranes, garbage trucks, flatbed tow trucks, refrigerator trucks;
2. We can give the professional advice and offer products and shipping solutions to help customs get the right products they need with the reasonable cost.
3, Technical support: online/video guide, and spare parts!
4, We follow the whole order from offer to shipping and after-sale, all your inquiry and questions will be feedback quickly.
