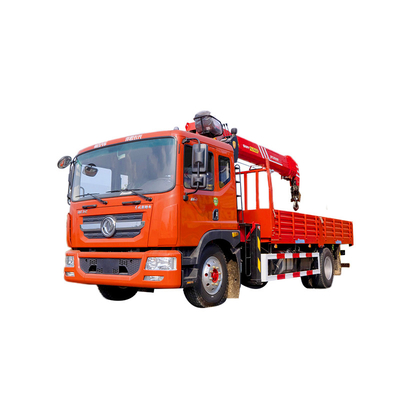

ホーム /製品/ブームのトラック クレーン/TRUCK CRANE Dongfeng 4x2 Truck Boom Crane 8 Ton Truck Mounted Hydraulic Crane Arm Crane Sanypalfinger For Trucks

TRUCK CRANE Dongfeng 4x2 Truck Boom Crane 8 Ton Truck Mounted Hydraulic Crane Arm Crane Sanypalfinger For Trucks

1 Set
MOQ
$19,900.00(1 - 4 Sets) $18,600.00(5 - 9 Sets) $17,900.00(>=10 Sets)
価格
TRUCK CRANE Dongfeng 4x2 Truck Boom Crane 8 Ton Truck Mounted Hydraulic Crane Arm Crane Sanypalfinger For Trucks
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Feature: TRUCK CRANE
Showroom Location: Philippines, Peru, Indonesia, Pakistan, Sri Lanka, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan
Condition: New
Application: Construction /hoisting
Rated Loading Capacity: 3600Kg
Rated Lifting Moment: 20t.m
Max. Lifting Height: 15.6m
Span: 4.8m
Warranty: 1 Year
Hydraulic Cylinder Brand: Liyuan
Hydraulic Pump Brand: Shen-bai
Hydraulic Valve Brand: Huada
Engine Brand: YU CHAI / KANG MING SI
UNIQUE SELLING POINT: High operating efficiency with good price
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: Pump, Gearbox, Engine
Weight (KG): 8200 kg
Crane type: Telescopic Straight Boom Crane
Maximum lifting weight: 8000kg
Max lifting heaight: 15.6m
Crane weight:: 3598kg
Boom arms: 4 sections
Chassis: Dongfeng Truck Chassis
Driving type: LHD, RHD, 4x2
Rotation angle: 360 Degree
Emission standard: Euro3/4/5/6
After Warranty Service: Video technical support, Online support, Spare parts
Local Service Location: Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Mexico, Morocco, Argentina, South Korea, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan
After-sales Service Provided: Video technical support, Online support
Applicable Industries: Building Material Shops, Machinery Repair Shops, Construction works , Other
証明: ISO9001
基本情報
証明: ISO9001
お支払配送条件
Packaging Details: Bulk, Ro-Ro, specified by the customers
Supply Ability: 2000 Set/Sets per Year
製品の説明
PRODUCT SPECIFICATIONS
Factory direct sales truck mounted crane
Product Overview
8 ton straight boom Crane information
Crane Specification
1
Crane Brand
Chang xing
Chang xing
2
Arms sections
4
5
3
Max lifting capacity(kg)
8000kg (2.5m)
8000kg (2.5m)
4
Max. Lifting moment
20 ton.m
20 ton. m
5
Working radius(m)
13.6m
16.3m
6
Max lifting height(m)
15.6m
18.5m
7
Crane weight(kg)
3598kg
3600kg
8
Operation pressure
31mpa
31mpa
9
span(m)
5.2m
5.2m
10
Rotation angle
360 full rotation
360 full rotation
Chassis information
Item
Data
Item
Data
1
Applicable crane
8 ton
Max Speed
88km/h
2
Chassis Brand
Dongfeng
Axles
2
3
Rated loading weight
6505/7505Kg
Cab
3 person allowed
4
Curb weight
11300/10300 kg
Engine Brand
Yu chai, Kang ming si
5
Dimensions
900/870 x 255 x 388/368 cm
Emission Standard
Euro 3/4/5
6
Cargo body dimension
605/580/560 x 235/240 x 60 cm
Horse Power
180-210 hp
7
Wheelbase
470 cm / 500 ncm
Emissions
4752/4500 ml
8
Drive type
4 x 2
Chassis Brand
Dongfeng / Shac Man / Faw / Howo /camc optional
Mainly used for hoisting / lifting works and engineering construction. Such as: factories, roads, bridges, buildings, rescue and so on.
FEATURES AT A GLANCE
Changxing crane mounted for trucks
Shenbai's independent R&D brand:
Changxing crane, Well know on domestic markets.
With different loading weight:
straight boom crane: 2ton, 3.5 ton, 4 ton, 5 ton, 8 ton, 10 ton, 12ton, 14ton, 16ton, 20ton.
knuckle / folding arms crane: 4 ton, 6.3 ton, 8ton, 12ton, 16ton, 20ton, 25tons, 30ton, 35ton, 40ton, 45ton, 65ton, 110 ton, at basic lifting height of 2m, and 83ton, 100ton, 130ton at lifght height of 4m.
PRODUCT CONFIGURATION
Other Dongfeng Trucks with cranes
Dongfeng 4X2 8 ton straight boom crane (2ton, 3.5ton,4ton,5ton,6.3ton available)
Dongfeng 6X4 10 ton Straight boom crane
Can apply for 12 ton
Dongfeng 8X4 16ton Straight boom crane
can apply for 20ton
Dongfeng 4X2 8 ton Knuckle boom crane with TIPPER truck
Dongfeng 6X4 10 ton knuckle boom crane
Dongfeng 8X4 16ton knuckle boom crane
Other Chassis Brand with CX cranes: Shacman Delong, FAW, HOWO
Company Profile / About Us


Hubei Shenbai Special Automobile Co., Ltd. was established in 2013 and is located in Suizhou City, Hubei Province. It is a core enterprise of Shenbai Group and a strategic partner of Sany Palfinger. The group focuses on the research, development and manufacturing of cranes, and other special purpose vehicle, like:truck mounted crane, flat bed tow trucks, refrigerated truck,garbage trucks and other special trucks. Shenbai now has an annual production scale of 8,000 special vehicles, and has passed IS9001-2000 international quality system certification and national 3C certification.
Our products have been shipped to many different countries and areas in Asia, Africa and South-America, we're looking for more and more longterm partnership all over the world!
FAQ
1.Are you factory or trading Company?
Yes, we are factory. You're welcomed to visit our factory.
2.Could your company modify the standard product depends on my request?
Yes. Our company is specialized in researching and designing various of special purpose vehicle and spare parts. We can provide any product according to your demand.
3. Could your company totally customize products for me?
We can provide the customized-designing product meeting with any of your demand.
4. Could you provide certification that we need?
We can provide various certifications associate with truck.
5. How long could we receive our goods?
It depends on the product that you have ordered. Generally 20-30 days.
6. How about the after-sale service?
We can provide you the technical support to guide you repair your product. And we will also offer original spare parts .
