ホーム /製品/クラック・クレーン/TRUCK CRANE 6X4 Crane Truck 10 Ton 12 Ton Straight Boom Crane Telescopic Truck Mounted Hydraulic Crane 3 Axles For Sale

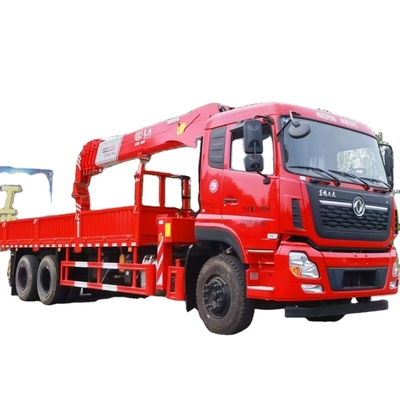

TRUCK CRANE 6X4 Crane Truck 10 Ton 12 Ton Straight Boom Crane Telescopic Truck Mounted Hydraulic Crane 3 Axles For Sale

1 Set
MOQ
$22,198.00(1 - 4 Sets) $21,298.00(5 - 9 Sets) $16,500.00(>=10 Sets)
価格
TRUCK CRANE 6X4 Crane Truck 10 Ton 12 Ton Straight Boom Crane Telescopic Truck Mounted Hydraulic Crane 3 Axles For Sale
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Feature: TRUCK CRANE
Showroom Location: Philippines, Peru, Indonesia, Pakistan, Sri Lanka, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan
Condition: New
Application: Construction /hoisting
Rated Loading Capacity: 10 TON
Rated Lifting Moment: 250kg.m
Max. Lifting Height: 15.6m
Span: 2.5-13.6m
Warranty: 1 Year
Hydraulic Cylinder Brand: Huade
Hydraulic Pump Brand: Huade
Hydraulic Valve Brand: Huada
Engine Brand: Dachai/Yuchai Optional
UNIQUE SELLING POINT: High operating efficiency with good price
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: New product 2020
Warranty of core components: 1 Year
Core Components: Pressure vessel, Motor, Gear, Pump, Gearbox, Engine
Weight (KG): 3970 kg
Product name: Truck Mounted Crane
Crane type: Telescopic Straight Boom Crane
Truck Brand: Dongfeng
Driving type: LHD, RHD, 6*4
Tyre numbers: 10pcs
基本情報
お支払配送条件
Packaging Details: Bulk, Ro-Ro, specified by the customers
Supply Ability: 1000 Set/Sets per Year
製品の説明
SIMILAR PRODUCTS
Factory direct sales truck mounted crane
Inquiry us for better price
Product Overview
Mainly used for hoisting / lifting works and engineering construction. Such as: factories, roads, bridges, buildings, rescue and so on.
Shenbai's independent R&D brand: Changxing crane, Well know on domestic markets.With different loading weight:
straight boom crane: 2ton, 3.5 ton, 4 ton, 5 ton, 8 ton, 10 ton, 12ton, 14ton, 16ton, 20ton.
knuckle / folding arms crane: 4 ton, 6.3 ton, 8ton, 12ton, 16ton, 20ton, 25tons, 30ton, 35ton, 40ton, 45ton, 65ton, 110 ton, at
basic lifting height of 2m, and 83ton, 100ton, 130ton at lifght height of 4m.
PRODUCT SPECIFICATIONS
10 ton straight boom Crane information
Crane Specification
1
Crane Brand
Chang xing
Chang xing
2
Arms sections
4
5
3
Max lifting capacity(kg)
1000kg (2.5m)
1000kg (2.5m)
4
Max. Lifting moment
25 ton.m
25 ton. m
5
Working radius(m)
13.6m
17.1m
6
Max lifting height(m)
15.6m
19.1m
7
Crane weight(kg)
3970kg
4600kg
8
Operation pressure
31mpa
31mpa
9
span(m)
4.7m
4.7m
10
Rotation angle
360 full rotation
360 full rotation
Chassis information
Item
Data
Item
Data
1
Applicable crane
10 / 12 ton
Max Speed
89km/h
2
Chassis Brand
Dongfeng
Axles
3
3
Rated loading weight
9105KG
Cab
single cab, 2 crew seat
4
Curb weight
15700/16200 kg
Engine Brand
Yu chai, Kang ming si
5
Dimensions
1200 x 255/259x 388/378 cm
Emission Standard
Euro 3/4/5
6
Cargo body dimension
840/720x 270/240 x55 cm
Horse Power
240/245hp
7
Wheelbase
435+130 cm, 540+130 cm
Emissions
6800/6700ml
8
Drive type
6x4
Chassis Brand
Dongfeng / Shac Man / Faw / Howo /camc optional
The truck mounted crane also calls boom truck,crane truck,unic crane, crane truck, lorry mounted crane, truck cargo with loader crane, knuckle boom crane on truck chassis, truck with mounted back crane, crane mounted cargo truck, truck with loading crane,boom crane, boom crane truck, articulated crane truck,is a kind of equipment that realizes the lifting, turning, and lifting of goods through a hydraulic lifting and telescopic system. It is usually assembled on a truck. It is generally composed of truck chassis, cargo compartment, power take-off and crane.It is designed for multiple work applications,
such as electric line maintenance and construction, transmission and distribution, tree trimming and other related uses . General materials lifting of various size and load with standard hook arrangement for construction sites, mines, projects, logistics requirements.. Our truck with crane also install Remote control, Brick clamping apparatus, different kinds of grab bucket, work basket, etc.
There are telescopic boom cranes and knuckle boom cranes, covering a wide range of capacities as follows:
Telescopic Boom Crane:2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 18Ton,20Ton,25Ton.
Knuckle Boom Crane:2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 18Ton, 20Ton, 25Ton, 27Ton, 30Ton, 32Ton, 35Ton.
The cranes can be of famous brands as Palfinger, Unic, Tadano, X-CMG, Zoom-lion,ChangXing, etc.
For truck, DONGFENG,ISUZU,Foton,Sinotruk Howo,FAW,Shacman for your choice.
PRODUCT CONFIGURATION
Other Optional Dongfeng Trucks with cranes
Dongfeng 4X2 5 ton straight boom crane (1.8ton, 4ton available)
Dongfeng 6X4 10 ton Straight boom crane
Can apply for 12 ton
Dongfeng 8X4 16ton Straight boom crane
can apply for 20ton
Dongfeng 4X2 8 ton Knuckle boom crane with TIPPER truck
Dongfeng 6X4 10 ton knuckle boom crane
Dongfeng 8X4 16ton knuckle boom crane
Other Optional Chassis Brand with CX cranes:
Shacman Delong, FAW, HOWO
Company Profile / About Us


Hubei Shenbai Special Automobile Co., Ltd. was established in 2013 and is located in Suizhou City, Hubei Province. It is a core enterprise of Shenbai Group and a strategic partner of Sany Palfinger. The group focuses on the research, development and manufacturing of cranes, and other special purpose vehicle, like:truck mounted crane, flat bed tow trucks, refrigerated truck,garbage trucks and other special trucks. Shenbai now has an annual production scale of 8,000 special vehicles, and has passed IS9001-2000 international quality system certification and national 3C certification.
Our products have been shipped to many different countries and areas in Asia, Africa and South-America, we're looking for more and more longterm partnership all over the world!
FAQ
1.where is your company?
Our company is located in the city of Suizhou, Hubei province, China.

2.What are the advantages of your company compared with others?
regional advantage: we are located in Suizhou, where is a well-known city for construction machinery. competitive price: with more than five years international trading, based on numerous feedback from our oversea customers, our price are believed to be the most favorable. fast delivery: normally, we could have an immediate delivery of regular machines for our clients.

3. Can you provide special lifting tools?
Yes, various kinds of lifting tools are accessible such as grabs,hooks......

4.What logistics ways you can work for delivery?
We can delivery the product by various transportation means. In most cases, we will go by sea, such as South America, Middle East,Africa, etc.
Apart from that, we also could delivery cranes by roads or railways, such as Russia, Mongolia, etc.
The delivery time depends on the product that you have ordered. Generally 20-30 days.

5.Are your products customized?
Yes, due to different working conditions,all our trucks are customized.
The more details you give us about your desirable truck the more accurate solution we can provide.

6.Which kind of information should I inquire when I buy a truck mounted crane?
The details in terms of the max lifting height, lifting capacity, rated load should be necessary.Apart from that, the working condition(materials to lift；local temperature)can also be important.

7.How about the after-sale service?
We can provide you the technical support to guide you repair your product. And we will also offer original spare parts .
Inquiry us:

1.We offer the full-series products with high level standard, of truck mounted cranes, garbage trucks, flatbed tow trucks, refrigerator trucks;

2. We can give the professional advice of products and shipping solutions.

3, Technical support: online/video guide, and spare parts!

4, We follow the whole order from offer, quotation, to shipping and after-sale.
All your inquiry and questions will be feedback quickly.
