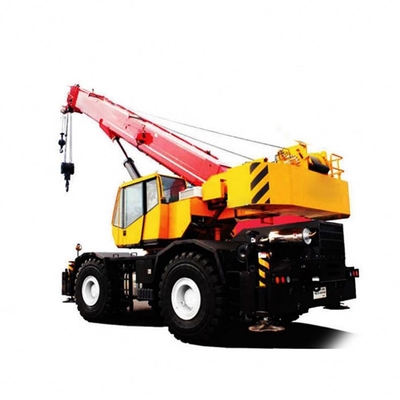

TRUCK CRANE Rough-Terrain Crane 40t Capacity 4 Section U Shape Lifting Boom SRC400C

1 Unit
MOQ
$150,000.00(1 - 2 Units) $130,000.00(>=3 Units)
価格
TRUCK CRANE Rough-Terrain Crane 40t Capacity 4 Section U Shape Lifting Boom SRC400C
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Feature: TRUCK CRANE
Showroom Location: Egypt, Turkey, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan,
Condition: New
Application: construction
Rated Loading Capacity: 40 ton, 40ton
Rated Lifting Moment: 1175kN.m, 1590kN.m
Max. Lifting Height: 47.4m, 47.4m
Span: 30m
Warranty: 1 Year, 1 Year
Hydraulic Cylinder Brand: IMPORTED
Hydraulic Pump Brand: IMPORTED
Hydraulic Valve Brand: IMPORTED
Engine Brand: IMPORTED
UNIQUE SELLING POINT: High operating efficiency
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: Ordinary Product, New Product 2021
Warranty of core components: 1 Year
Core Components: Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC
Weight (KG): 30900 kg
Weight: 30900 kg
証明: CE, ISO
Max Jib Length: 13.7m
Max Gradeability: 105%
Wheel Formula: 4*4
基本情報
証明: CE, ISO
お支払配送条件
Packaging Details: Nude packing
Supply Ability: 1000 Unit/Units per Month
製品の説明

Rough-Terrain Crane 40t Lifting Capacity 4 section U shape boom SRC400C

Product Overview
ENERGY EFFICIENCY
* The new dual working mode of superstructure and carrier. The dual working mode of the engine. Reducing noise, oil, and heat consumption. Top class working speed.

PRECISE CONTROL
* Electrical proportional joystick: quick reaction in 5ms, providing smooth operation of start and stop Joystick stroke can be adjusted from 0%-100% such that the loading can be as precise as mm level. The smart flow distribution system, which is the initial flow shunt and confluence method and improved inching motions.
Product Paramenters
Model
SRC300C
SRC300CR
SRC400C
Operation
Full Counterweight
2.8T
4.0T
4.0T
Max Lifting Capacity
30T
30T
40T
Max Boom Length
31.5m
31.5m
31.5m
Max Jib Length
13.7m
12.5m
13.7m
Max Lifting Height
46.5m
46m
47.4m
Max Lifting Moment
976kN/m
968kN/m
1175kN/m
Traveling
Available Districts
LHD countries
RHD countries
Outside USA
Engine Model (Emission Standard)
ISDe 270 30 (Stage Ⅲ)
ISDe 270 (Stage Ⅲ)
QSB6.7 (Stage Ⅲ)
Max Gradeability
65%
65%
105% (at stall)%
Max Traveling Speed
46km/h
46km/h
37km/h
Wheel Formula
4 × 4
4 × 4
4 × 4
Product Configuration
Rough-Terrain Crane 40t Lifting Capacity 4 section U shape boom SRC400C
* SRC400C truck crane boasts excellent traveling performance. the double-axle drive is applied to provide good mobility.
Trafficability and comfortableness under the complex road condition is improved with reliable traveling performance.
