CRANE TRUCK Rough Terrian Crane XCM G RT150 150ton Mobile Hot Sale Crane in China

1.0 Units
MOQ
CRANE TRUCK Rough Terrian Crane XCM G RT150 150ton Mobile Hot Sale Crane in China
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Feature: TRUCK CRANE
Showroom Location: Philippines, Peru, Algeria, Bangladesh, Uzbekistan
Condition: New
Application: Construction
Rated Loading Capacity: 150ton
Rated Lifting Moment: 5145KN.m
Max. Lifting Height: 80 meters
Span: /
Warranty: 1 Year
Hydraulic Cylinder Brand: famous brand
Hydraulic Pump Brand: famous brand
Hydraulic Valve Brand: famous brand
Engine Brand: famous brand
UNIQUE SELLING POINT: best price
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: New Product 2020
Warranty of core components: 1 Year
Core Components: Engine
After-sales Service Provided: Engineers available to service machinery overseas, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Free spare parts
Crane type: All-terrian Cranes
Travel Speed: 33 Km/h
Engine Power: 224 kW
Applicable Industries: Construction works
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: Philippines, Peru, Algeria, Bangladesh, Uzbekistan
証明: ISO
基本情報
証明: ISO
お支払配送条件
Packaging Details: Standard Export Packing, shipped by Ro-Ro vessel
Supply Ability: 50 Unit/Units per Month
製品の説明

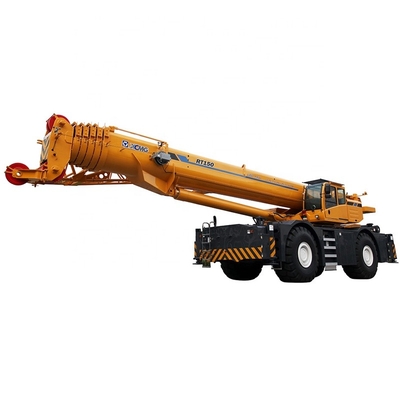

Rough Terrian Crane XCM G RT150 150ton Mobile Crane Truck Hot Sale in China

Product Description

RT150 is a high-end model developed by XCM G and an experienced R&D institute in Europe. The product is equipped with two-axle loading chassis and has two types of driving model, four types of turning models and back-and-forward driving function. It is equipped with six sections of single cylinder plunger main doom, H-type outrigger as well as combined self-removal and installation counterweight. It has three types of operation models such as operation with the support of outrigger, operation with the support of tire and hanging when driving. It is widely used in oil field, mine, road and bridge construction, warehousing base and other construction sites.

Main Parameter

Project
Unit
Parameter
Measurements Parameters
Length of Entire Vehicle
(mm)
16350
Width of Entire Vehicle
(mm)
3570
Height of Entire Vehicle
(mm)
4100
Wheel Base
(mm)
4820
Wheel Track
(mm)
2640
Weight Parameters
Gross Vehicle Weight When Driving
(kg)
90500
Axle Load
(kg)
(Front Axle)36690/(Rear Axle)53810
Kinetic Paremeter
Engine Type
-
QSL
Engine Rated Power(kw/
(kw/(r/min))
224
Engine Max Torque(N.m/
(N.m/(r/min))
1369
Driving Parameters
Driving
Max Travel Speed
(km/h)
33
Min Travel Speed
(km/h)
2
Swerve
Min Turning Radius
(m)
17
Head Min. Turning Diameter
(m)
-
Max Gradeability
(%)
60
Min. Ground Clearance of Machine
(mm)
580
Approach Angle
(°)
21.3
Departure Angle
(°)
16.4
Braking Distance
(m)
9
Fuel Consumption per 100kms
(L)
-
Major Performance Parameters
Max. Rated Lifting Capacity
(t)
150
Min. Rated Range
(m)
3
Max. Load Moment of Basic Jib
(kN·m)
5145
Radius of Gyration of Turntable Tail
(mm)
4780
Outrigger
Longitudinal
(m)
9.2
Horizontal
(m)
8.5/7.2
Max. Lifting Height
Basic Boom
(m)
14.3
Longest Main Boom
(m)
62.3
Longest Main Boom + Auxiliary Boom
(m)
80
Boom Length of Crane
Basic Boom
(m)
13.2
Longest Main Boom
(m)
62
Longest Main Boom + Auxiliary Boom
-
82
Working Speed
Max. Slewing Speed
(r/min)
1.8
Lifting Speed
Main Hoisting Mechanism
(m/min)
140(Unload)
Auxiliary Hoisting Mechanism
(m/min)
140(Unload)
Packaging & Shipping

We supervise the process from the factory to the port designated by the customer to ensure that the customer's products arrive at the destination accurately and safely.

Company Information

Our factories have passed the certification of relevant organizations.

For example, ISO, CNAS, IAF and so on.

Products have also passed CE, GHOST certification and so on.

Every year, we regularly attend the Canton Fair, the Philippines, Indonesia, Russia and other construction machinery and building machinery exhibitions.

We have received more than 1000 clients and training engineers from more than 100 countries around the world.

Our Services

we are famous building machinery manufacturer, professional construction machinery exporter and one stop solution supplier in China, our team have more than 15 years experience in this field already.

(1)Warranty:Every product issued shall enjoy a one-year/2000 working hour warranty period, during which we will repair or replace the defective parts free of charge if material or process defects occur and spare parts are in normal working condition.

(2)Spare parts:CANMAX is dedicated to provide our clients with genuine spare parts with the highest quality,exact fitness and appropriate function.with our global distributor network,you are guaranteed with fast deliveries and services, wherever you are,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately.

(3)Installation & Maintenance:CANMAX is able to provide with the overall installation of complicated machinery,allowing you to start the normal operation of construction machinery solutions.After installation,we will make inspection of the whole machine,operate equipment,and provide you with testing data reports of installation and operation.

(4)Training:CANMAX offer perfect facilities and comfortable environment and can provide training services to different users. The training sessions include product training, operation training, maintenance know-how, technical know-how training, standards, laws and regulations training and other training, all of which are tailored to fulfill your individual needs. Training programs can be conducted in our factory field, or at the client's site.

(5)Technical Advice: CANMAX can also help customers to coordinate with trained service personnel and provide you with detailed and extensive knowledge. Through our technical advice, your machine life can be significantly extended and sustained high capacity.

We have already exported our products to more than 80 countries and regions, including: Africa, the Middle East, South America, Central Asia, Russia, Mexico, Australia, New Zealand, Holland, British, Mongolia and so on.

FAQ

Which countries do you export to?

Asia: India, Philippines, Thailand, Burma, Vietnam, Bangladesh, Kazakhstan, Turkmenistan, etc. Middle East: Saudi Arabia,UAE, Jordan, Oman, Syria, Pakistan, Qatar, etc. Europe: Russia, Ukraine, Belarus, Bulgaria, etc. Africa: South Africa, Kenya, Congo, Ethiopia, Nigeria, Ghana, Algeria, Senegal, Tunisia, etc. South America: Brazil, Peru, Chile, Cuba, Venezuela, Mexico, etc. Oceania: Papua New Guinea, Australia, etc.

What is the proportion of your products exported?

75% of our products are exported to all over the world.

What is the payment term?

Payment term is negotiable and there will be favorable payment terms for long-term customers. TT, L/C, D/P, depending on the cooperation time, country and contract value.

What kind of logistic service do you supply?

A. Transportation: railway transportation, international through transport, including (international railway through transportation, Sea-rail intermodal through transportation, sea-land multimodal transportation. Means of transport : Container, LCL, FRC, ro-ro, bulk cargo, train carriage, truck, air plane.

B. Term: FOB,CIF, DAP, to door service, etc.

What spare parts can you supply?

All kinds of spare parts of XCM G, SHANTUI, ZOOMLION, SINOTRUCK, SHACMAN, LIUGONG, SAN Y, SDL G, LONKING, XGMA, CUMMIN S ENGINE, ZF GEAR BOX, etc.

Contact Us

Send Message or Chat Now for Best price!!!

CANMAX, as a professional one-stop machinery equipment supplier, we always keep the service philosophy " Running On Faith, Keep Promise, Focus On Customer Concerns, Walk To Success With Customer ", devote ourselves to what customer needs, and provide products and service with high performance and good price.

Please let us know the main use, brand, power and other requirements of the purchased products.

We will recommend the related products to you.

↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓
