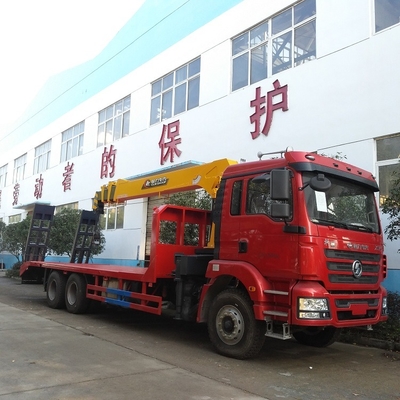

SHANQI flatbed truck 20 ton with 12 ton crane for transporting excavator,construction machinery etc.
flatbed truck 20 ton is also named hydraulic truck crane, mobile crane, truck mounted crane, lorry-mounted crane, lorry crane, truck with loading crane, truck cargo crane and so on. It is widely used in various loading and unloading, installation and lifting, especially in the field of outdoor lifting, salvage operation and other narrow places such as station, port, warehouse and construction site.
Product Notes:
Main Parameters of truck with crane | ||
Product Name | crane tipper truck | |
Cab | Single row cab, two doors, rated passengers 2 or 3 | |
Chassis | Brand | XUANDE |
Adaptive Crane | 12T | |
Front/Rear Axle Load | 5.5T/13T | |
Drive type | 6x4 left hand drive or right hand drive | |
Tire/Tire No. | 10.00-20 18PR 10+1 spare tire | |
Wheelbase(mm) | 4350+1300 | |
Braking System | air brake | |
Transmission | Manual , 12 gearbox | |
Engine | Brand | Yuchai |
fuel type | diesel | |
Horse Power(kw/hp) | 199kw/270hp | |
Displacement(ml) | 7520 | |
Emission standard | Euro 2/3/4/5 | |
Dimension & Weight | Overall dimension (L*W*H/mm) | 11950×2500×3450,3650 |
Body dimension(L*W*H)(mm) | 8500×2350×600 | |
Axles No. | 3 | |
Curb Weight(kg) | 15100 | |
Max speed(km/h) | 90 | |
Performance Parameters of Crane | |||||
Max lift quality(kg) | 12000 | Max. Lifting Height(m) | 17.5 | Number of boom sections | 4 |
Working radius(m) | 16.4 | Outrigger span(m) | 3.8-5 | Boom shape | Hexagon |
Swivel Angle Range | 360° | Installation space | 800mm | ||
Truck with crane series
1.Packaging: nude or waxing.
2.Shipping: in the 20GP/40GP container or Ro-Ro ship or bulk ship according to the customer’ order or requirement.
